SSMB Male RF Coaxial Connector – Flange Mount Plug

Name: SSMB Male RF Coaxial Connector Flange Mount Plug
Brand: SIPU
Price: 1 USD

Quality SSMB Male RF Coaxial Connector – Flange Mount Plug wholesale

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : SSMB-K2Y

Certification : ISO9001, RoHS, CE

Packaging Details : master carton

Supply Ability : 100000pcs/year

Price : Discuss

Delivery Time : 5-8week days

Product name : SSMB Male RF Coaxial Connector

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

Contact Now

SSMB Male RF Coaxial Connector – Flange Mount Plug

SSMB Male RF Coaxial Connector – Flange Mount Plug

Product Overview:

The SSMB series is a compact, snap-on (push-in) style miniature RF coaxial connector designed for high-frequency circuit applications. Its small form factor and quick-connect mechanism make it suitable for dense layouts and precision signal paths.

Application Areas:

Commonly used in electronic instruments, radio equipment, and compact RF systems requiring lightweight, space-saving interconnect solutions.

Product Features:

Flange-mounted plug with screw fastening for secure installation
Designed for lightweight, anti-vibration, and space-efficient use
Easy to install and maintain
Ideal for high-frequency coaxial cable termination in equipment or panel-mounted designs

Key Technical Specifications

Electrical Property			Temperature Range	-55～+155℃
Characteristic Impedance		50Ω	Frequency Range	DC-3GHz
Dielectric Withstanding Voltage		500V	VSWR	≤1.35
Insulation Resistance		≥1000MΩ	Insertion Loss	≤0.06dB
Contact Resistanc	Center Conductor	≤5.0mΩ	Mechanical Property
Contact Resistanc	Outer Conductor	≤2.5mΩ	Durability	500 Cycles

Materials & Finish

Center Conductor

Beryllium Bronze, Gold Plated

Insulating Medium

PTFE

Outer Conductor

Brass, Gold Plated

Sealing Ring

N/A

SSMB Male RF Coaxial Connector – Flange Mount Plug

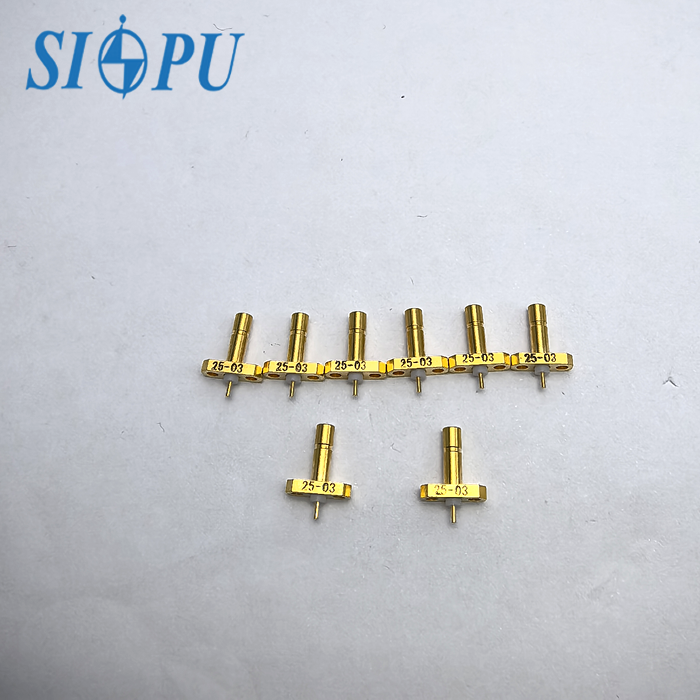

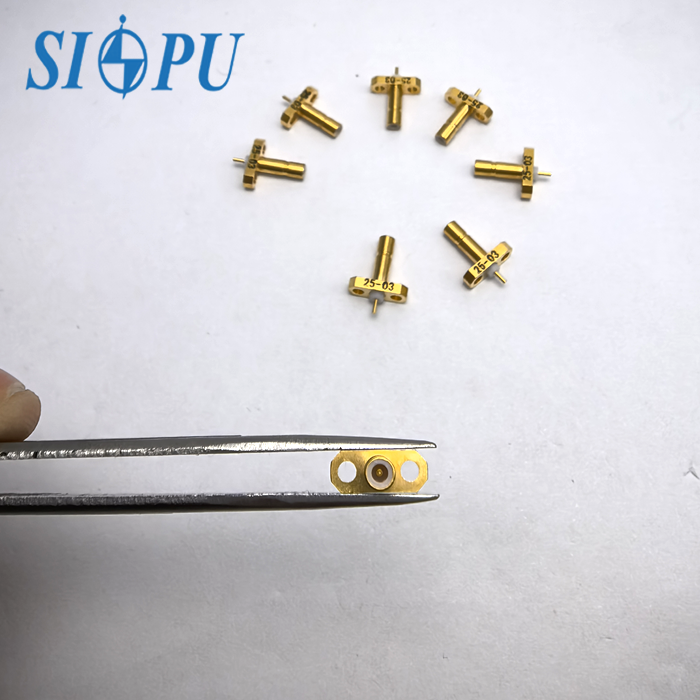

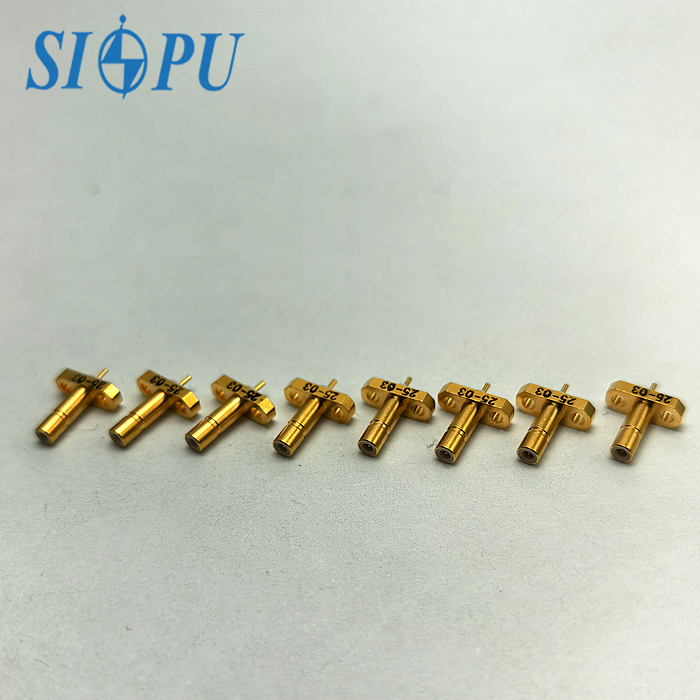

SSMB Male RF Coaxial Connector – Flange Mount Plug Images
