BMA Male RF Coax Connector for Screw Mount Receptacle CXN3506 Cable

Product Categories
Xi'an Aerospace Sipu Electronic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

BMA Male RF Coax Connector for Screw Mount Receptacle CXN3506 Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : BMA（S）-JY3506-T

Certification : ISO9001 R0HS

Packaging Details : Carton

Price : DISCUSS

Delivery Time : 5-8works

Supply Ability : 120000

Product name : 1

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : Matching low loss cables, four hole installation, cable connectors

Contact Now

BMA Male RF Coaxial Connector, Screw Mount Receptacle, Receptacle Coax Connector Screw Mount Receptacle CXN3506 Cable

Product introduction

A new type of ultra small blind sliding RF coaxial connector that can be used to connect various microwave circuits, especially for blind matching of chassis and cabinets. Compliant with IEC61169-33 standard.
Application: Widely used in the interconnection of modular products.
Product features: Equipped with CXN3506 low loss stable phase cable, it has the characteristics of large bandwidth, small size, easy installation, and easy welding.

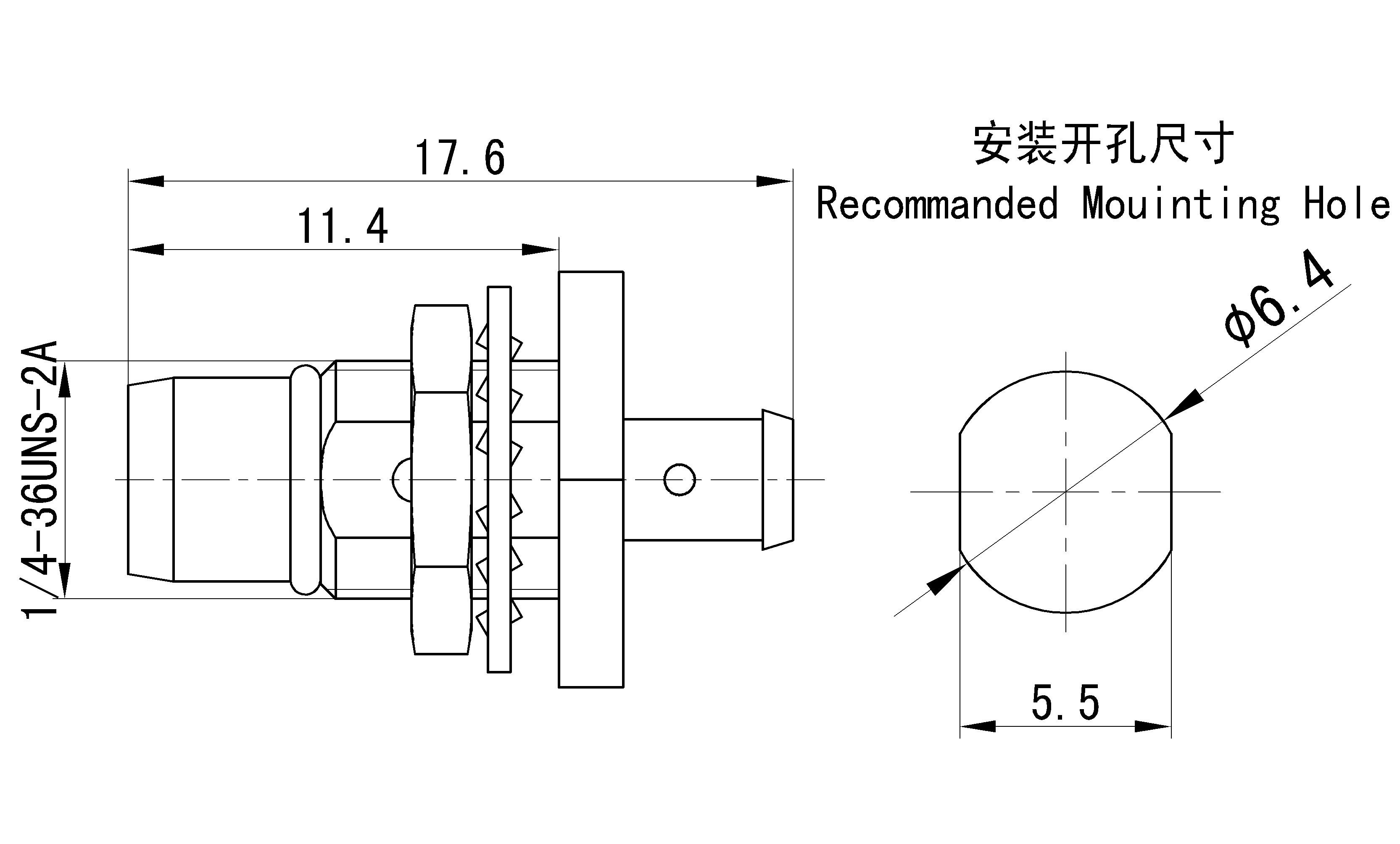

Product specifications

BMA Male RF Coax Connector for Screw Mount Receptacle CXN3506 Cable

Important technical parameters

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-22GHz

Dielectric withstanding voltage

 1000V

VSWR

 ≤1.15+0.012F(GHz)

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

 / /

Picture display

BMA Male RF Coax Connector for Screw Mount Receptacle CXN3506 CableBMA Male RF Coax Connector for Screw Mount Receptacle CXN3506 Cable
