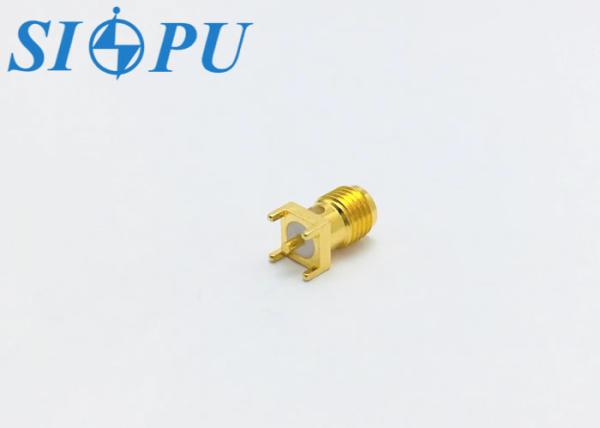

SMA Female Coaxial Connector PCB Soldering Socket

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KHD17

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : PCB soldering connector

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : SMA RF Coaxial Connectors PCB Solder Receptacles

Contact Now

SMA Female Coaxial Connector PCB Soldering Socket

Product introduction

SMA series connectors are small threaded connections, with superior frequency bandwidth, mechanical and electrical performance, and high reliability, which are suitable for digital microwave equipment, communications, aerospace and other fields.
Applications: Communications, radars, antennas, microwave measurement equipment, etc.
Product features: four-hole flange installation, microstrip size φ1.3×0.5×1.5, with the characteristics of frequency bandwidth, small size, excellent performance and long life.

Product appearance

SMA Female Coaxial Connector PCB Soldering Socket

Important technical parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and surface treatment

Center conductor

 Beryllium bronze,gold plating Insulating medium

PTFE

Outer conductor

 Brass,gold plating / /

Picture display

SMA Female Coaxial Connector PCB Soldering SocketSMA Female Coaxial Connector PCB Soldering Socket
