SMA Male Connector SFF-50-1.5-1 RF Coaxial Cable Assembly

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SMA-J3/SMA-J3-SFF-50-1.5-1-L

Certification : ISO9001

Place of Origin : China

MOQ : 50

Price : Provide a quotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/year

Delivery Time : 6-8work days

Packaging Details : Carton

Product name : SMA male connector SFF-50-1.5-1 RF coaxial cable assembly

Characteristic impedance : 50Ω

VSWR : ≤1.3

Frequency range : DC-6GHz

insertion loss : ≤5.8dB(L=2300mm）

Contact Now

SMA Male Connector SFF-50-1.5-1 RF Coaxial Cable Assembly

Product introduction

The RF coaxial cable assembly mainly consists of three parts, namely the connectors at both ends and the coaxial cable.
According to the flexibility of cables, they can be divided into three categories: semi steel cables, semi flexible cables, and flexible cables. This cable component is a flexible cable component.
Product features: The two end connectors are SSMA-J3507G-T RF connectors, which are matched with CXN3507 RF coaxial cables or other cables of the same specification. They are flexible cables with shielding efficiency better than 90dB, low loss, good flexibility, light weight, and good phase stability. They are suitable for environments with strict temperature, vibration, and phase consistency requirements. The length L (mm) can be adjusted according to user requirements.
Application scope: communication, radar, navigation, etc.

Product specifications and testing indicators

SMA Male Connector SFF-50-1.5-1 RF Coaxial Cable Assembly
SMA Male Connector SFF-50-1.5-1 RF Coaxial Cable Assembly

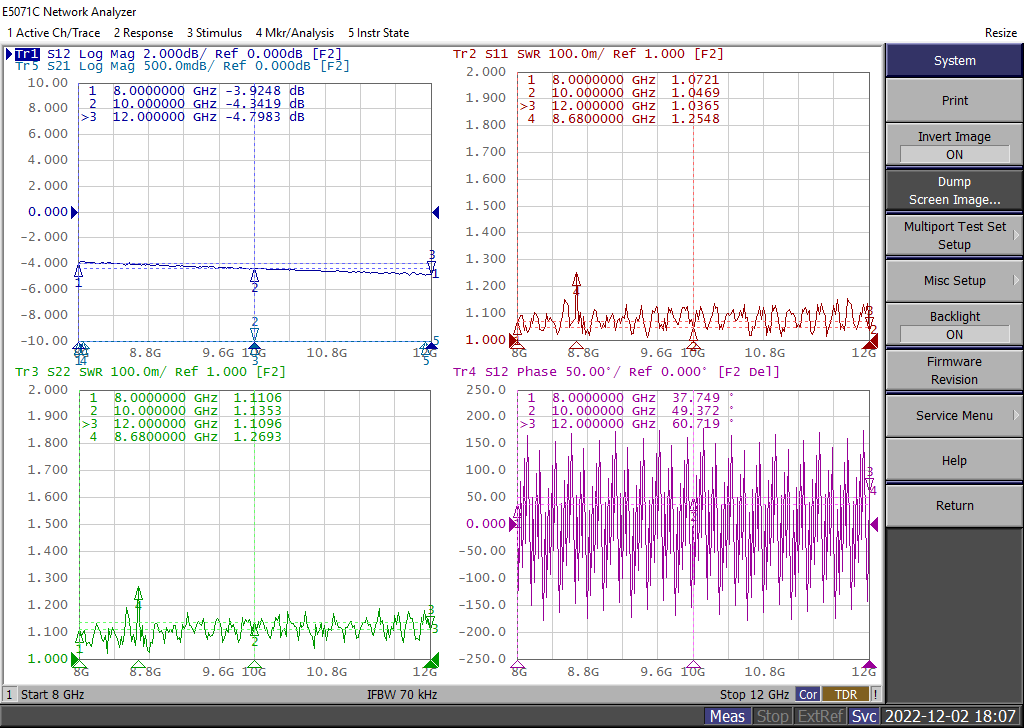

测试图(L=2300mm)

Important technical parameters

Electrical property

Temperature range

 -55～+125℃

Characteristic impedance

 50Ω

Frequency range

 DC-6GHz

Dielectric withstanding voltage

 500V

VSWR

 ≤1.3

Insulation resistance

 ≥5000MΩ

Insertion loss

 ≤5.8dB


Picture display

SMA Male Connector SFF-50-1.5-1 RF Coaxial Cable AssemblySMA Male Connector SFF-50-1.5-1 RF Coaxial Cable Assembly
